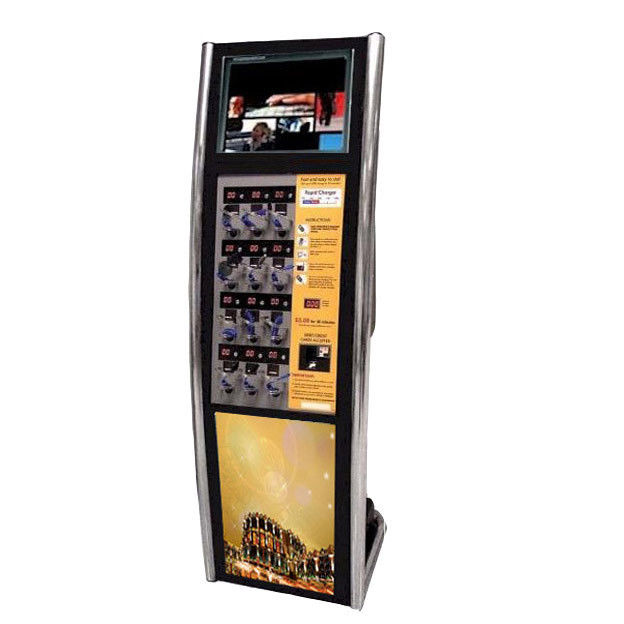

Universal Cell Phone Charging Kiosk , Mobile Phone Keypads For Samsung

Universal Cell Phone Charging Kiosk , Mobile Phone Keypads For Samsung

Integrates deposit locker, phone charger and advertising displayer as "three-in-one", so that people can have their cell phone charged and locked for anti-theft, they can either stay there watching advertising video or walk away to buy a Newspaper, coffee, ect.


1. Computer parts:

Industrial Computer: Industrial Motherboard: SV-H6116

CPU: Intel G2020
RAM:2GB;   Hard Disk:500G
6 RS-232 Ports;8 USB Ports,2* 10/100M Net Port
Integrated Net Card, Sound Card,View Card
Computer case and power supply

2. Monitor:17" LCD
Brightness: 300lumens/m2
Contrast: 450:1
Response Time:5ms；Dot pitch: 0.297；
Max. resolution:1280×1024

3. Touch Screen:17" Infrared

    High Transparence, high precision and durability
    antirust,anti-acid,anti-dust
    Thickness: 6mm, Max: 4096×4096
    Surface Hardness: Mohs' hardness rating of 7
    Force<100G; Response Time: 5ms

4. Coin acceptor: G-13

Highest level of performance is maintained with factory quality field programming,Easily configurable to suit
most applications,Truly global

5. Card Reader: CRT310

 Motorized card reader.  Takes card into reader, mag card/IC card reading - writing;Electric protection valve;
 Eject the card  when abnormal and pwr-failur

6. Metal Keypad(Encrypted Pin Pad): KY-3688A

16 Keys Encrption Metal Keyborads; Number Keys: 10; Function Keys: 6 Supporting   DES&3DES arithmetic of
 ECB & CBC  and ANSI X 9.8 PIN; Block format; Store confidential Keys with16 sets 64 bit; Available to write in;
 Unavailable to read out, Self-destruct when disassembled.PCI compliance

7. Receipt Printer: Epson M-T532

Thermal Printer;Automatic Paper Cutter; RS-232; Paper in Width:80mm; Speed:150mm/Second;  with Black
Mark Sensor

8.  14*Cellphone Charger:Cellphone Charger for 3 iphone, 2 Blackberry, 2 Samsung, and 1 Nokia chargers

9.  14*E-locks:Will open or close the door after input pin

10.  Speakers:Left and right bi-channel; amplified output; Multimedia speaker

11.  Enclosure:KVS-9203
Durable steel frame, Power coated; Slim and smart design; Easy to install and operate;
Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, color upon request.

12. OS Software:Microsoft Windows 7 (Trial version),  all hardware drivers are available

13. Packing:Bubble Foam, Carton, Wooden Case

The design,configuration and interior part is subject to change of customers’ requirements


KVSIO Products Include:

Bill Payment Kiosk, Cash Payment Kiosk ,Interactive Information Kiosk ,Wall Mounted Kiosk ,Free  Standing Kiosk ,
Ticket Vending Kiosk, Card Dispenser Kiosk,Lobby Kiosk, Dual Screen Kiosk , Outdoor Touch Screen Kiosk ,
Retail Mall Kiosk , Digital Signage Kiosk ,Selfservice Photo Kiosk , Countertop Kiosk, Multifunction Kiosk ,
Multifunction ATM, Internet Kiosk, Check In Kiosk , Hospital Kiosk , Gaming Kiosk, Mobile Phone Charging Kiosk ,
Foreign Currency Exchange Kiosk etc
