    Product Details:

    Place of Origin: China
    Brand Name: HUIHUANG
    Certification: CE, ROSH, Design Patent
    Model Number: AT-S430

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Packaging Details: Portable bag
    Delivery Time: samples: 1-3 days after received the full payment, bulk order: 5—10 days after received full payment
    Payment Terms: T/T,Paypal
    Supply Ability: 6000 pcs/ week
    Contact Now
    Detailed Product Description

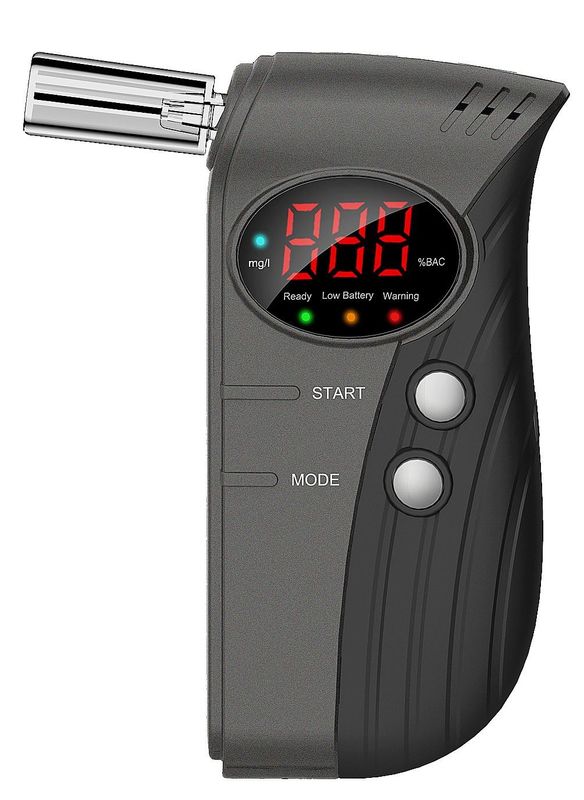

    Low Battery Indication High accuracy Breathalyzer Mouthpieces with LED display red words





    1 Sensor: Advanced MEMS semiconductor alcohol

    sensor--mp3 sensor

    2 Red wine goblet-like design

    3 Warm-up time: Within 18 seconds









    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication Breathalyzer Mouthpieces with LED display red words

    Low Battery Indication High accuracy Breathalyzer Mouthpieces with LED display red words

    High accuracy breathalyzer Alcohol Tester Mouthpieces with 3 digits LED display red words



    Technical Data

    Sensor type: MP-3 alcohol sensor

    Detection Range: 0.00 1.00mg/L ;0.00 0.20%BAC

    Alarming Level: 0.24mg/L (0.05%BAC,  0.50g/L;

    0.50 BAC)

    Accuracy: 5% F.S

    Response Time: 5s

    Warm-up Time: 20s

    Resume Time: 20s

    Working Voltage: DC3.0V 2 x AAA Batteries;

    Working Current: 120mA

    Working Environment: Temperature -10 ~50 Relative

    Humidity 95% No Dewing

    Display: 3 digits LED display with red words

    Dimension: 110 x 150 x 18mm (L W H),  80g Battery

    excluded



    General Introduction

     AT-S430 breath alcohol tester is kind of tester designed to measure concentration result of the breathed alcohol in the human body. This device adopts advanced MP-3 alcohol sensor which has excellent sensitivity and reproducibility, fashion and portable design make it more convenient for personal use. When the alcohol content exceeds the preset limited level, this device would send an audio and video warning to remind your safety.



    Features:

    1 Sensor: Advanced MEMS semiconductor alcohol

    sensor--mp3 sensor

    2 Red wine goblet-like design

    3 Warm-up time: Within 18 seconds

    4 Respond time: Within 5 seconds

    5 Operating temperature range: 5 ~ 40 oC

    6 Detection range: 0.00% - 0.19% BAC / / 0.00-0.99mg/l

    7 DC plug for automobile (optional)

    8 Black background for red test results display

    9 Low battery indication

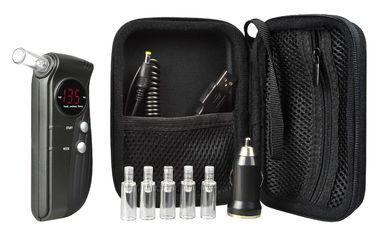

    10 Six Mouthpieces w/ individual wrapped

     11 Elegant portable bag



    Operation Instruction

    1. Slide down the battery cover on the back side,  insert 2 pcs AAA 1.5V batteries according to battery polarity indication and close it. Or use DC plug to directly connect with vehicle to use.

    2. Press the start button last for 2 sec,   the tester would be on with a buzzer brief ringing,   Warm-up of 20 sec begin,   the fig on the screen count down from 20-0,  please wait now. After the countdown,   tester will send out a ring,   and the ready light will be on. Now the test could begin.

    3. Have a deep breath before testing,   and blow directly to gas entry until a buzzer ringing,   “000” twinkles for 4 seconds on the screen.

    4. Tester will send out a ring after testing process finished,   the LED screen would give the readout of temporal alcohol concentration (If the testing result is lower than preset level,   the warning light will be off; If the testing result is higher than preset level,   the buzzer ringing continuously,   at the same time the warning light will be red),   this result would be keep on the screen for 10 sec,   then cut off the power supply automatically with two buzzer ringing.

    5. If a new testing needed,   press the Start button again and repeat the above step 2.2 2.4.

    6. Press the model button to choose the unit of the result you want.



    Packing details:

    Portable bag

    350gsm gift box

    60pcs each carton

    size:74*35.5*32cm

     G.W.:13.8kg
